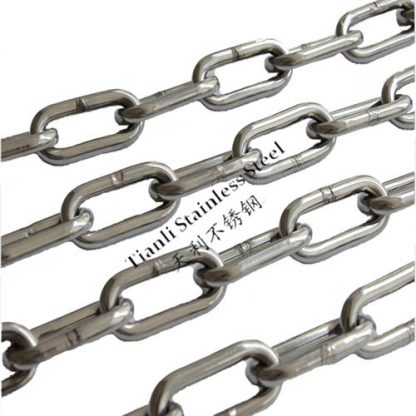

DIN763 Stainless steel long link chain

DIN763 Stainless steel long link chain DIN763 Stainless steel long link chain Send Inquiry Product Details DIN763 Stainless steel long link chain Material: 201, 304, 316 stainless steel Standard: DIN763 Chain type: long link chain Surface: bright Diameter: 2mm – 20mm  Welding type: argon-arc welding Breaking force: 1.25KN – 160KN  Length: according to customer’s requirements.  Type of packing: Gunny bag, plastic reel, wooden reel, plastic drum, steel drum, wooden box Data:  Product Dia (mm) Inside Length (mm) Outside Width   (mm) WLL(kg) BL (N) Weight (kg/m) Long link chain 2 22 8 25 1250 0.06 2.5 24 10 40 2000 0.1 3 26 12 55 3200 0.15 3.5 28 14 80 3850 0.2 4 32 16 100 6000 0.27 4.5 34 18 128 6300 0.35 5 35 20 160 10000 0.43 5.5 38.5 22 195 9500 0.52 6 42 24 224 14000 0.63 7 49 28 300 18000 0.86 8 52 32 400 25000 1.1 8.5 56 34 460 22500 1.25 9 59 36 530 32000 1.41 10 65 40 630 40000 1.75 11 72 44 790 47500 2.11 12 78 48 940 56500 2.55 13 82 52 1000 63000 2.95 16 100 64 1600 100000 4.45 18 113 70 2120 127000 5.65 19 119 72 2370 142000 6.25 20 120 75 2500 160000 7 Previous DIN764 Stainless steel middle link chain Next Related Products Send Inquiry Subject* Name* Email* Inquiry Items Leave Your Message*
