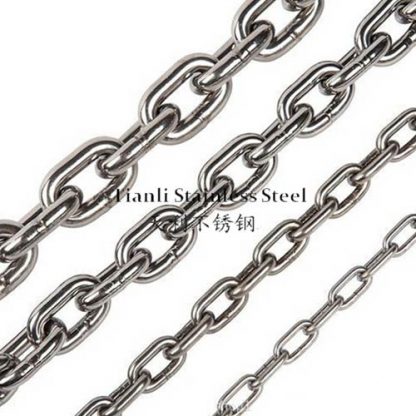

DIN766 Stainless steel short link chain

DIN766 Stainless steel short link chain DIN766 Stainless steel short link chain Send Inquiry Product Details DIN766 Stainless steel long link chain Material: 201, 304, 316 stainless steel Standard: DIN766 Chain type: short link chain Surface: bright Diameter: 2mm – 32mm  Welding type: argon-arc welding Breaking force: 1.25KN – 260KN  Length: according to customer’s requirements.  Type of packing: Gunny bag, plastic reel, wooden reel, plastic drum, steel drum, wooden box Data: Product Dia (mm) Inside Length (mm) Outside Width   (mm) Weight (kg/m) Short link chain  2 12 3.5 0.07 3 16 4.2 0.16 4 16 5 0.32 5 18.5 6 0.5 6 18.5 7.2 0.8 7 22 8.4 1.1 8 24 9.6 1.4 9 27 10.8 1.8 10 28 12 2.2 11 31 13.2 2.7 12 36 14.4 3.1 13 36 15.6 3.8 14 41 16.8 4.4 16 45 19.2 5.7 18 50 21.6 7.3 19 86 22.8 7.97 20 89 24 9 22 95 26.4 11 23 97 27.6 12 26 73 31.2 15 28 78 33.8 18 30 84 41 19.5 32 90 43 23 Previous Australian short link chain DIN764 Stainless steel middle link chain Next Related Products Send Inquiry Subject* Name* Email* Inquiry Items Leave Your Message*
